CCIE R&S Troubleshooting - Sample Trouble Tickets - Part 1
Things sure can get spooky in the Troubleshooting section of the new Version 4 Blueprint! Cisco can present a pretty vague issue; give you a very lame diagram; and then really press you for time to solve the Trouble Ticket. In this blog post, I will walk you through this graveyard and attempt to provide some ideas on an efficient and effective approach. For much more detail and practice, our premier products for this exam section are the Volume 4 workbook (currently being edited and improved upon), and the brand new 5-Day Troubleshooting Bootcamp.

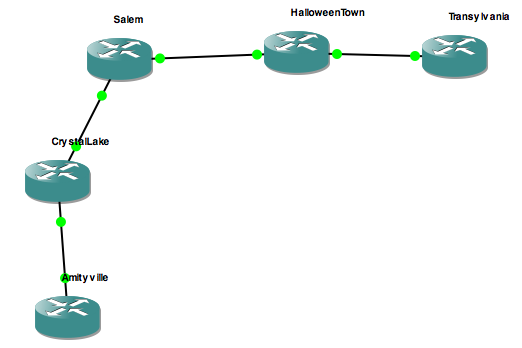

Are you ready to find prefixes that go bump in the night? Here is the sample Trouble Ticket we will attack, and the appropriate portion of the Cisco diagram. You will want to have some scratch paper handy (just like in the actual exam). Diagramming can prove to be more important here then in any exam section. You should practice a diagram now based on the show output that follows.
Trouble Ticket 1
Vampires located in VLAN 666 (behind Amityville) are unable to access any resources located behind Transylvania. Correct this issue without static routing, additional routing protocols, or redistribution of any kind.
The first order of business is to “expand” upon their diagram and determine what protocols are in use and where. A quick show ip protocols on each of the devices in the transit path should do the trick.
Transylvania#show ip protocols
Routing Protocol is "eigrp 100"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Default networks flagged in outgoing updates
Default networks accepted from incoming updates
EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0
EIGRP maximum hopcount 100
EIGRP maximum metric variance 1
Redistributing: eigrp 100
EIGRP NSF-aware route hold timer is 240s
Automatic network summarization is not in effect
Maximum path: 4
Routing for Networks:
53.234.10.23/32
Routing Information Sources:
Gateway Distance Last Update
Distance: internal 90 external 170Routing Protocol is "bgp 65001"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
IGP synchronization is disabled
Automatic route summarization is disabled
Unicast Aggregate Generation:
10.10.0.0/16 summary-only
Neighbor(s):
Address FiltIn FiltOut DistIn DistOut Weight RouteMap
53.234.10.44
Maximum path: 1
Routing Information Sources:
Gateway Distance Last Update
Distance: external 20 internal 200 local 200HalloweenTown#show ip protocols
Routing Protocol is "eigrp 100"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Default networks flagged in outgoing updates
Default networks accepted from incoming updates
EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0
EIGRP maximum hopcount 100
EIGRP maximum metric variance 1
Redistributing: eigrp 100
EIGRP NSF-aware route hold timer is 240s
Automatic network summarization is not in effect
Maximum path: 4
Routing for Networks:
53.234.10.44/32
Routing Information Sources:
Gateway Distance Last Update
Distance: internal 90 external 170Routing Protocol is "bgp 65001"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
IGP synchronization is disabled
Automatic route summarization is disabled
Neighbor(s):
Address FiltIn FiltOut DistIn DistOut Weight RouteMap
23.10.24.190
53.234.10.23
Maximum path: 1
Routing Information Sources:
Gateway Distance Last Update
Distance: external 20 internal 200 local 200Salem#show ip protocols
Routing Protocol is "ospf 1"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Router ID 66.150.201.12
Number of areas in this router is 1. 1 normal 0 stub 0 nssa
Maximum path: 4
Routing for Networks:
Routing on Interfaces Configured Explicitly (Area 0):
FastEthernet0/0
Reference bandwidth unit is 100 mbps
Routing Information Sources:
Gateway Distance Last Update
102.34.102.12 110 00:30:55
Distance: (default is 110)Routing Protocol is "bgp 65000"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
IGP synchronization is disabled
Automatic route summarization is disabled
Neighbor(s):
Address FiltIn FiltOut DistIn DistOut Weight RouteMap
23.10.24.200
Maximum path: 1
Routing Information Sources:
Gateway Distance Last Update
Distance: external 20 internal 200 local 200CrystalLake#show ip protocols
Routing Protocol is "ospf 1"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Router ID 102.34.102.1
Number of areas in this router is 1. 1 normal 0 stub 0 nssa
Maximum path: 4
Routing for Networks:
Routing on Interfaces Configured Explicitly (Area 0):
FastEthernet0/1
FastEthernet0/0
Reference bandwidth unit is 100 mbps
Routing Information Sources:
Gateway Distance Last Update
Distance: (default is 110)Routing Protocol is "bgp 65000"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
IGP synchronization is disabled
Automatic route summarization is disabled
Neighbor(s):
Address FiltIn FiltOut DistIn DistOut Weight RouteMap
66.150.201.12
Address FiltIn FiltOut DistIn DistOut Weight RouteMap
102.34.102.12
Maximum path: 1
Routing Information Sources:
Gateway Distance Last Update
Distance: external 20 internal 200 local 200Amityville#show ip protocols
Routing Protocol is "ospf 1"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Router ID 102.34.102.12
Number of areas in this router is 1. 1 normal 0 stub 0 nssa
Maximum path: 4
Routing for Networks:
Routing on Interfaces Configured Explicitly (Area 0):
FastEthernet0/0
Reference bandwidth unit is 100 mbps
Routing Information Sources:
Gateway Distance Last Update
102.34.102.1 110 00:33:23
Distance: (default is 110)Routing Protocol is "bgp 65000"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
IGP synchronization is disabled
Automatic route summarization is disabled
Neighbor(s):
Address FiltIn FiltOut DistIn DistOut Weight RouteMap
102.34.102.1
Maximum path: 1
Routing Information Sources:
Gateway Distance Last Update
Distance: external 20 internal 200 local 200
As I parse the results, I create a more detailed diagram to provide a better picture of what is going on. Looking at the diagram, I immediately contemplate some design issues that could come into play. The iBGP split-horizon rule, next-hop reachability, and synchronization all could come into play here given the protocol configuration.
I decide to start as close the destination as possible and examine the relevant configurations.
Transylvania#show run | section bgp
router bgp 65001
no synchronization
bgp log-neighbor-changes
network 10.0.0.0
aggregate-address 10.10.0.0 255.255.0.0 summary-only
neighbor 53.234.10.44 remote-as 65001
no auto-summary
It appears the intent is to advertise prefixes (the Loopback interfaces) beyond Transylvania using BGP prefix aggregation. Let me ensure that configuration is done correctly.
Sure enough, here is our first BGP configuration issue. We need to advertise a component prefix of the aggregate. The little gremlin that attempted this configuration tried to accomplish this with the network statement, but they got it wrong. Subnetting is being done here of the 10.x.x.x space, so you need to reconfigure the network statement as follows:
Transylvania#show ip int brief
Interface IP-Address OK? Method Status Protocol
FastEthernet0/0 53.234.10.23 YES manual up up
FastEthernet0/1 unassigned YES unset administratively down down
Loopback1 10.10.10.1 YES manual up up
Loopback2 10.10.11.1 YES manual up up
Loopback3 10.10.12.1 YES manual up up
Transylvania#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Transylvania(config)#router bgp 65001
Transylvania(config-router)#network 10.10.10.0 mask 255.255.255.0
After making this change, I check Salem to see if it is receiving the aggregate from Transylvania and we have reachability:
Salem#show ip bgp
BGP table version is 2, local router ID is 66.150.201.12
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
r RIB-failure, S Stale
Origin codes: i - IGP, e - EGP, ? - incompleteNetwork Next Hop Metric LocPrf Weight Path
*> 10.10.0.0/16 23.10.24.200 0 65001 i
Salem#show ip route bgp
10.0.0.0/16 is subnetted, 1 subnets
B 10.10.0.0 [20/0] via 23.10.24.200, 00:06:26
Salem#ping 10.10.10.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.10.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 28/33/40 ms
We are on our way to solving this Trouble Ticket...we hope you will follow this blog and continue this (and more) troubleshooting scenarios!
