    Accessing the Firewall

    Posted byINE

    After returning from vacation, Bob (the optimistic firewall technician) decided that he wanted to take some time and get a little bit more familiar with firewall configuration. He was able to get permission to use some spare equipment for practice.



    He started with a basic configuration on the firewall:

    hostname INEASA1
    password cisco
    enable password cisco

    interface e0/1
    nameif inside
    no shut
    ip address
    security-level 90

    interface e0/0
    nameif outside
    ip address
    security-level 10
    no shut

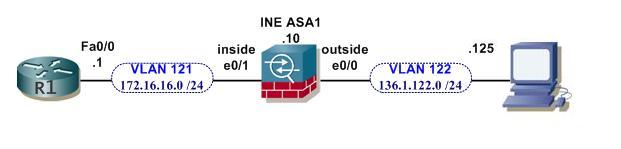

    Bob verified that he could ping both R1 and his PC from the Firewall. Now, he wants to configure the firewall to allow telnet from his PC. He remembers that there was some additional configuration that needed to be done on the firewall to allow this to work, but doesn't remember exactly what is needed. Since his PC isn't connected to the internet, he is not able to access the online documentation.

    What additional configuration will allow Bob to telnet to the firewall from his PC?

    There is more than one possible solution for this challenge. Feel free to post your proposed answer in the comments section. We will try to keep comments hidden from public view, so that the fun isn't spoiled for others.


    OK, so let's look at the problem here. The PC is on the outside of the firewall, and according to multiple responses, you can't telnet to the outside interface. (or can you?)

    A few helpful hints when studying for the CCIE lab.

    1. Don't be afraid to go to the documentation, even for topics you think you know.
    2 Re-read the question, to see just what you are asked to do and what your restrictions are.

    So, where does the confusion about being able to telnet to the firewall come from? Perhaps it comes from trying in earlier versions, perhaps some confusion about what the documentation says, or perhaps someone read somewhere in the past that it just wouldn't work.

    Let's start by carefully re-reading the documentation. ASA - Config guide - system administration - managing system access - allowing telnet

    This section states:

    "...The security appliance allows Telnet connections to the security appliance for management purposes. You cannot use Telnet to the lowest security interface unless you use Telnet inside an IPSec tunnel. ..."

    So, it doesn't explicitly mention the outside, it mentions the "lowest security interface". In most cases that is the outside, but not always.

    A few "solutions"

    1. Configure the switch so that Bob's PC is on VLAN 121 instead of VLAN 122, configure the firewall to allow telnet on the inside interface. (Technically would meet requirements, but not much of a challenge.)

    2. Change the security levels for the interfaces, making them the same or making the outside higher.

    3. Add another interface with a lower security level

    int eth0/1.1
    vlan 123
    nameif DMZ
    sec 9

    4. Configure a VPN for the firewall, so that the telnet traffic to the lower security (outside) interface is encrypted and therefore allowed.

    5. Configure the firewall to allow transit traffic through to R1. Telnet to R1, and then Telnet to the ASA from R1, after configuring the ASA to allow telnet on the inside interface.
